This project shows how to use linear regression to predict the data trend in Matlab.

The data and business context are extracted from a bigger assignment from the Mahcine Learning course from Coursera at https://www.coursera.org/learn/machine-learning.

Suppose we want to predict the property price base on the historical data. We have data about sold houses in the past including size of the house, number of bedroom, and the sold price.

The data and data visualization

The data source is a csv file with 3 columns where the first column is the size of the house in square feet, the second column is the number of bedroom, and the third column is the price of the house.

2104,3,399900
1600,3,329900
2400,3,369000
1416,2,232000
3000,4,539900
1985,4,299900
1534,3,314900
1427,3,198999
1380,3,212000
1494,3,242500

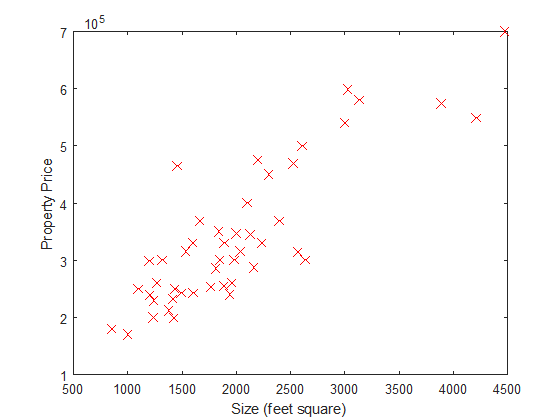

Data scatter plot

fprintf('Plotting Data ...\n')
data = load('ex1data2.txt');
x = data(:, 1); y = data(:, 3);
plot(x, y, 'rx', 'MarkerSize', 10); % Plot the data
ylabel('Property Price'); % Set the y axis label
xlabel('Size (feet square)'); % Set the x axis label

The model and cost function

Suppose we model the relationship between the population and the profit by a linear model as follows

where x_1 is the city population and \theta is our parameter. We would like to optimize the parameter \theta_0 and \theta_1 best fit the model line. It means minimizing the square distance between the actual profit and the hypothesis profit as stated in the following cost function.

where m is the number of data entry. To solve the optimization problem, we may use either gradient descent algorithm or apply the closed form solution. First, we need to calculate the derivative of the cost function.

For gradient descent, each iteration performs the following update.

where \alpha is a positive number which controls how big the jump is in each iteration. Each step the parameter \theta_jcome closer to the optimal values that will achieve the local minimum cost J.

Alternatively, we could calculate \Theta directly based on the closed-form solution as follows.

Solving by gradient descent

The following function calculate the cost J

function J = computeCost(X, y, theta)
%COMPUTECOST Compute cost for linear regression
%   J = COMPUTECOST(X, y, theta) computes the cost of using theta as the
%   parameter for linear regression to fit the data points in X and y
m = length(y); % number of training examples
J = 0;
sum=0;
for i=1:m
   sum=sum+(theta(1)*X(i,1) + theta(2)*X(i,2) - y(i))^2;
end
J=sum/(2*m);
end

Then use the gradient descent algorithm to find \theta.

function [theta, J_history] = gradientDescent(X, y, theta, alpha, num_iters)
%GRADIENTDESCENT Performs gradient descent to learn theta
%   theta = GRADIENTDESCENT(X, y, theta, alpha, num_iters) updates theta by
%   taking num_iters gradient steps with learning rate alpha
m = length(y); % number of training examples
J_history = zeros(num_iters, 1);

for iter = 1:num_iters
    temp_theta=theta;
for j=1:length(theta)
    sum=0;
   for i=1:m
       sum=sum+(X(i,1)*theta(1)+X(i,2)*theta(2)-y(i))*X(i,j);
   end
   temp_theta(j)=theta(j)-alpha/m*sum;
end
   theta=temp_theta;
    % Save the cost J in every iteration
    J_history(iter) = computeCost(X, y, theta);
end
end

Plot the Cost function over iterations to show convergence.

plot(1:iterations,J_history)
xlabel('Iterations')
ylabel('Cost')

Solving by closed-form solution

It is alot simpler in coding when it comes to closed-form solution.

theta_c=(X'*X)^(-1)*X'*y

Visualization of the fitting line

hold on; % keep previous plot visible
plot(X(:,2), X*theta, '-')
legend('Training data', 'Linear regression')
